Description

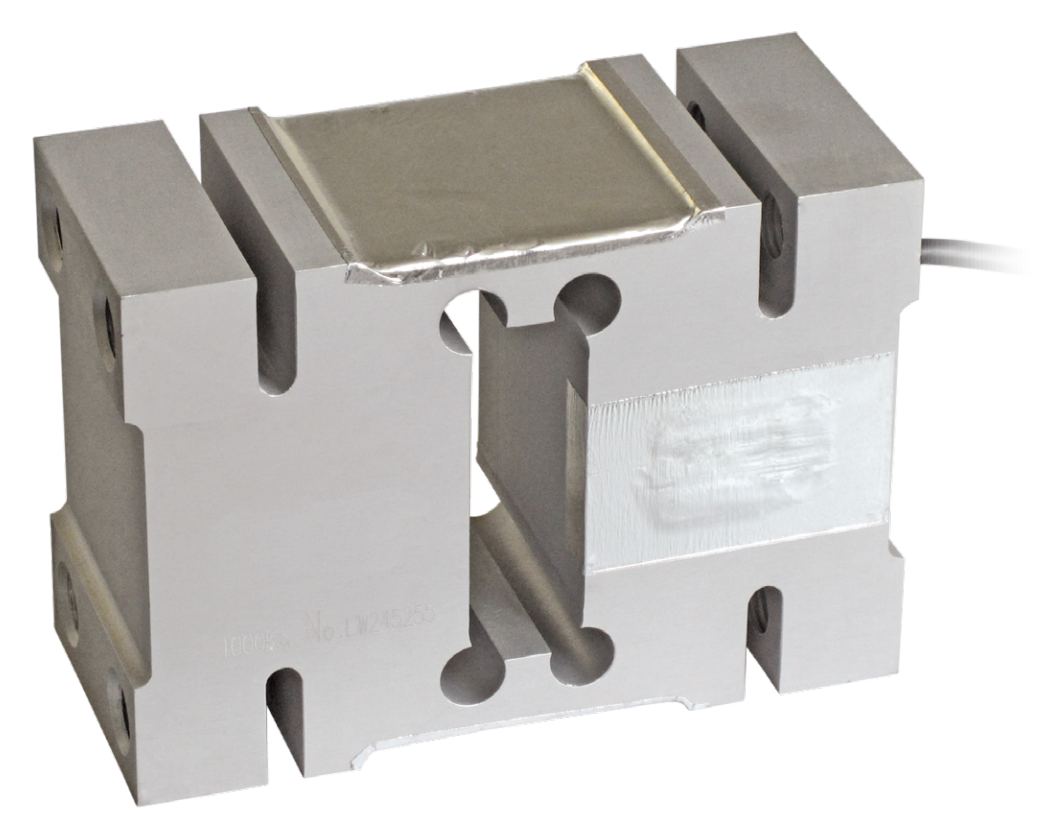

LCLN Single-Point Load Cell – Single-point load cell made of aluminum alloy for platform scales, accuracy class OIML R60 C3.
Features
- Rated capacity 1,000–2,000 kg (10,000–20,000 N)
- Total error ≤ ±0.02% FS
- Protection class IP65, aluminum alloy housing
- Rated output 2 mV/V ±10%
- Safe overload 150% FS, ultimate overload 300% FS
- Operating temperature range −35…+65 °C
- CE, REACH, ROHS, OIML R60 C3; ATEX, ISO-17025 calibration on request
